PAL100 Pallet trommelspijkermachine
- Artikelnummer
- PAL100
- Smooth shank nail length
- 55 - 100 mm
- Smooth shank nail diameter
- 2,5 - 3,8 mm
- Collation angle
- 16 °
- Collation type
- Wire collated
- Serie
- PalletPro

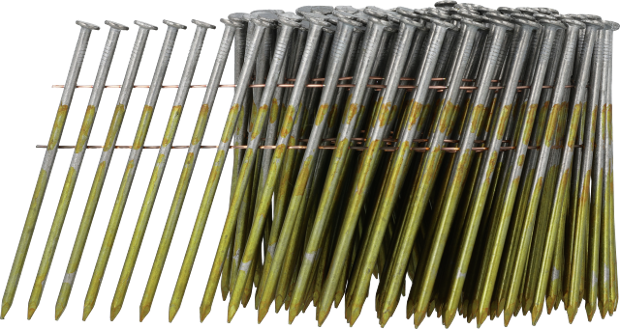

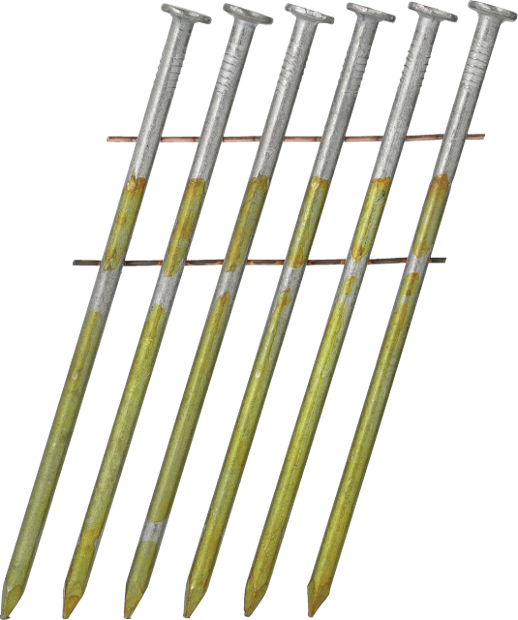

3,1mm plat gerolde, gladde trommelspijker, HDG, Sencoted
tap image to zoom
Omschrijving
3,1mm plat gerolde, gladde trommelspijker, HDG, Sencoted
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specificaties
- Article number
- HD29ASBFR
- GTIN
- 8715274029573
Technische specificaties
- Collation angle
- 16 °
- Wounding type
- Flat
- Collation type
- Wire collated
- Wire material
- Carbon steel standard tensile
- Finish
- Hot-Dipped galvanised 3
- Coating
- Sencoted
- Application environment
- Outdoor
- Type of nail
- Coilnails
- Nail shank type
- Smooth shank
- Point type
- Diamond
- Pointangle
- 40 °
- Pitch min
- 8.4 mm
- Pitch max
- 8.4 mm
- Max outerdiamer coil
- 122 mm
- Nail diameter
- 3.1 mm
- Amount fasteners on strip/coil
- 200 - 200
- Nail length
- 90.0 mm
- Characteristic head pull through parameter
- 22.45 N/mm²
- CE fastener type
- Round cross-section plain shank nail
- DOP No
- HD29ASBFR
- Protection level in micron
- 55
- Service class
- 3
- Coating type
- Coating type 3
- Coating length
- 61.5 mm
- Head cross sectional area
- 37.0 mm
- Characteristic yield moment
- 2640.0 Nmm
- Characteristic tensile strength
- 620.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 2.9 N/mm²
Niet-technische specificaties
- Package quantity
- 900
- Net weight
- 5.02 kg
