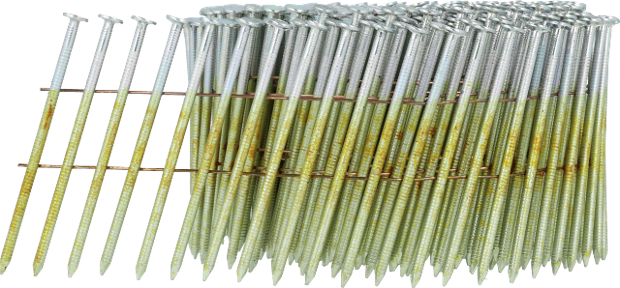

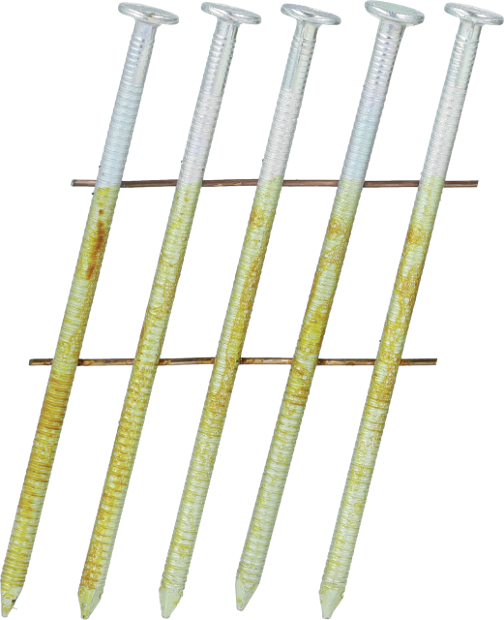

2,87mm plat gerolde, ring, trommelspijker, gegalvaniseerd 12micron, Sencoted

Specificaties

Article number

GL21AXBF

GTIN

8715274044064

Technische specificaties

Collation angle

16 °

Wounding type

Flat

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Finish

Zinc plated 12 micron

Coating

Sencoted

Application environment

Half indoor

Type of nail

Coilnails

Nail shank type

Ring shank

Point type

Diamond

Pointangle

40 °

Pitch min

8.4 mm

Pitch max

8.4 mm

Max outerdiamer coil

122 mm

Nail diameter

2.87 mm

Amount fasteners on strip/coil

250 - 250

Nail length

50.0 mm

Characteristic head pull through parameter

27.12 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

GL21AXBF

Protection level in micron

12

Service class

2

Head cross sectional area

36.0 mm

Threaded/profiled length

37.0 mm

Characteristic yield moment

3054.0 Nmm

Characteristic tensile strength

695.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

8.5 N/mm²

Niet-technische specificaties

Package quantity

9000

Net weight

22.81 kg
